HIGH INTENSITY UV SOURCES mW/cm² (milliwatts/square cm).

MODEL 5.0
Total UV (A+B) 280-400 nm, mW/cm² (milliwatts/square cm). Overall lamp intensity vs. ageing.

-------------------------------------------------

LOW INTENSITY UV FROM WINDOWS, REPTILE LAMPS AND STERILISATION LAMPS uW/cm² (microwatts/square cm).

MODEL 5.7
Total UV (A+B) 280-400 nm, uW/cm² (microwatts/square cm). Low level UV from windows & home lamps.

MODEL 6.2
UVB 280-320 nm, uW/cm² (microwatts/square cm). Low level UV reptile lamps.


MODEL 8.0
UVC 246-262 nm, uW/cm² (microwatts/square cm). Peak 254 nm. Germicidal lamps.

------------------------------------------------

SPECIALITY ENVIRONMENT APPLICATION – UV INDEX AND VITAMIN D3

MODEL 6.5
UV index outdoor solar intensity. International standard for UV Index. mWm2 Eeff/ 25.


MODEL 6.4
Vitamin D3 IU / minute. UVB synthesized International Units of 25(OH)D converted from 7-DHC.

----------------------------------------------

ERYTHEMALLY EFFECTIVE UVR

MODEL 7.0
MED/HR 280-400 nm SUV. Minimal Erythema Dose/Hour Diffey weighted irradiance.

MODEL 7.5
W/m2 Eeff(Ery) for new Australian Standard Solaria regulations of 0.9 W/m2.

------------------------------------------------

VISIBLE BLUE & RED LIGHT PHOTOTHERAPY LAMPS AND LED’s

SOLARMETER 9.4 BLUE LIGHT - ENQUIRE ON THIS PRODUCT

The Model 9.4 features an Integral Sensor and applications include blue lamp intensity, blue LED intensity, eyewear actinic blocking, biliruben lamp aging, aquarium lamp aging, acne lamp aging. Also available in microwatt version.

Specifications Radiometer
Model 9.4
Irradiance Range 0-199.9 mW/cm²
Response @ 450 nm 98%
Resolution 0.1 mW/cm²
Conversion Rate 3.0 Readings/Sec
Display 3.5 Digit LCD
Operating Temps 0° C to 40° C
Operating Humidity 5% to 80% RH
Accuracy ±10% REF.NIST
Dimensions (LxWxD) 10.5 x 6 x 2.2 cm
Weight 110 Grams
Power Source 9-Volt DC Battery
Lens UV Glass
Diffuser Virgin Teflon .005
Detector GaP with Schott filter

.

Plant Growth

The blue band of the photosynthetic radiation action spectrum (PAR).

The phototropic response spectrum of plants.

Sensor/Detector
 GaP Photodiode packaged in hermetically sealed UV glass window cap.

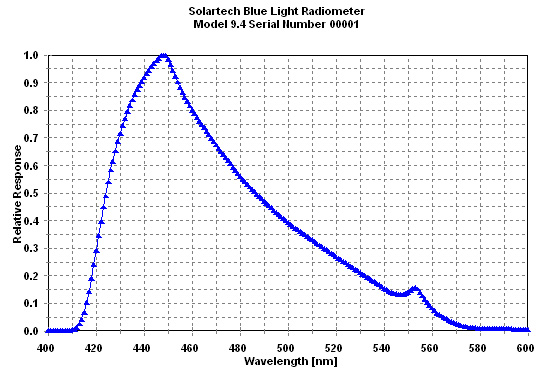

Schott color glass filter to narrows response as shown on spectral response graph.


Operation
Press and hold push-button switch on face of unit. Aim sensor window in top panel of meter directly at blue light source. Note reading on LCD and record if desired.
.

Proper Usage of Solarmeter ® Ultraviolet Radiometer for Lamp Aging Tests

  • Wear actinic eye protection when checking blue lamps.

  • Allow lamps to warm-up prior to taking readings (at least 5 min).

  • Hold meter integral sensor close to source to measure individual lamp or LED intensity. Hold sensor at working distance from source for effective intensity.

  • When checking aging of lamps, keep measuring distance and locations constant.

  • Lamps should be replaced when output drops to about 70% of their original (new) readings.

  • If unsure of what new values were, replace a lamp with new one and compare old one.

  • Do not subject the meter to extremes in temperature, humidity, shock or dust.
