HIGH INTENSITY UV SOURCES mW/cm² (milliwatts/square cm).

MODEL 5.0
Total UV (A+B) 280-400 nm, mW/cm² (milliwatts/square cm). Overall lamp intensity vs. ageing.

-------------------------------------------------

LOW INTENSITY UV FROM WINDOWS, REPTILE LAMPS AND STERILISATION LAMPS uW/cm² (microwatts/square cm).

MODEL 5.7
Total UV (A+B) 280-400 nm, uW/cm² (microwatts/square cm). Low level UV from windows & home lamps.

MODEL 6.2
UVB 280-320 nm, uW/cm² (microwatts/square cm). Low level UV reptile lamps.


MODEL 8.0
UVC 246-262 nm, uW/cm² (microwatts/square cm). Peak 254 nm. Germicidal lamps.

------------------------------------------------

SPECIALITY ENVIRONMENT APPLICATION – UV INDEX AND VITAMIN D3

MODEL 6.5
UV index outdoor solar intensity. International standard for UV Index. mWm2 Eeff/ 25.


MODEL 6.4
Vitamin D3 IU / minute. UVB synthesized International Units of 25(OH)D converted from 7-DHC.

----------------------------------------------

ERYTHEMALLY EFFECTIVE UVR

MODEL 7.0
MED/HR 280-400 nm SUV. Minimal Erythema Dose/Hour Diffey weighted irradiance.

MODEL 7.5
W/m2 Eeff(Ery) for new Australian Standard Solaria regulations of 0.9 W/m2.

------------------------------------------------

VISIBLE BLUE & RED LIGHT PHOTOTHERAPY LAMPS AND LED’s

SOLARMETER 8.0 UVC - ENQUIRE ON THIS PRODUCT

The Model 8.0 features an Integral Sensor and applications include lamp UVC intensity & aging, germicidal lamps, eyewear UV block comparison, UVC lamp box leak check. eyewear UV block comparison.

Specifications Radiometer
Model 8.0
Irradiance Range 0-1999 µW/cm² UVC

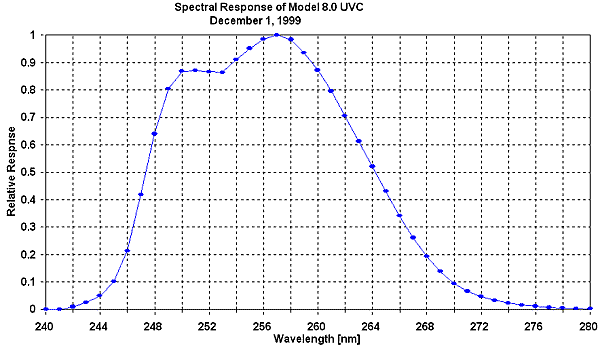

Response 246-262 nm (254 ± 8 nm)
Resolution 1 µW/cm²
Conversion Rate 3.0 Readings/Sec
Display 3.5 Digit LCD
Operating Temps 0° C to 40° C
Operating Humidity 5% to 80% RH
Accuracy ±10% REF.NIST
Dimensions (LxWxD) 10.5 x 6 x 2.2 cm
Weight 110 Grams
Power Source 9-Volt DC Battery
Lens UV Glass
Diffuser None
Detector SiC/Shortpass I.F.

.

Sensor/Detector
Silicon Carbide (SIC) Photodiode packaged in hermetically sealed UV glass window cap. Interference filter blocks UVA and UVB.

Operation
Press and hold push-button switch on face of unit. Aim sensor window in top panel of meter directly at UV source. Note reading on LCD and record if desired.

Proper Usage of Solarmeter ® Ultraviolet Radiometer for Lamp Tests

  • Wear UV-block eye, face, hand protection when checking UVC lamps.

  • Allow lamps to warm-up prior to taking readings (at least 5 min).

  • Hold sensor close to lamp to measure individual lamp UVC intensity. Hold sensor at distance from lamp(s) for effective sterilization intensity.

  • When checking aging of lamps, keep measuring distance and locations constant.

  • Lamps should be replaced when output drops to about 70% of their original (new) readings.

  • If unsure of what original new values were, replace a lamp with new one and compare old one.

  • Do not subject the meter to extremes in temperature, humidity, shock or dust.

  • Use a dry, soft cloth to clean the intrument. Keep sensor free of oil, dirt, etc.

Note: Sensor is completely solar blind to UVB, UVA, visible, and IR. Meter will read 000 pointing to non-UVC sources, eg, sun, floodlamps, etc.
